Connecting the pins

From IBF-Wiki

This article is part of an introduction tutorial called CrashCourse2
Download this article as PDF-File

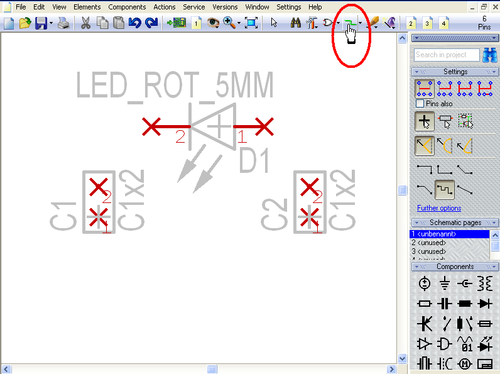

Click M1 into empty space on your schematic to have all parts unmarked. The pins of component symbols are connected by the function "Place wire" using icon DrawSignal.jpg
You can either use keyboard key [2] in order to start this function.

More details?

Signal
Page
Lead a signal to a next page
Grid
Component Server
Component Management System
Block Diagram
Bus

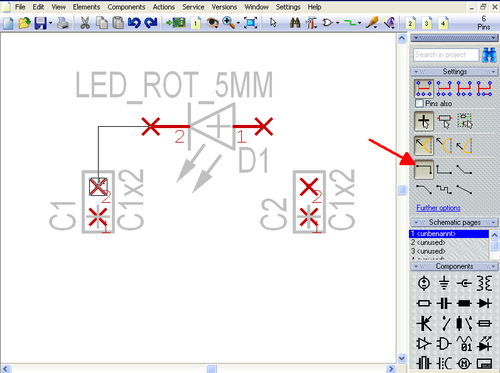

Now lead the signal by M1H from the cathode of the diode to a pin of a connector. The signal has adapted the pin function and leads it further as a signal name. After you have created the connection cut the wire by the use of [Esc] or by M12 to proceed with a new connection. Toggle the bending mode by the use of the "space bar".


Schematic 7.jpg

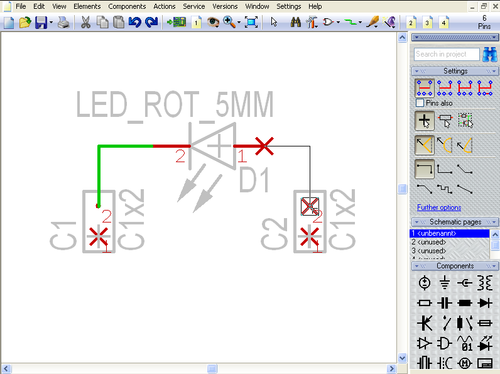

Now connect the anode of the LED...

More details?

Bending modes
Undo
Redo



Schematic 8.jpg

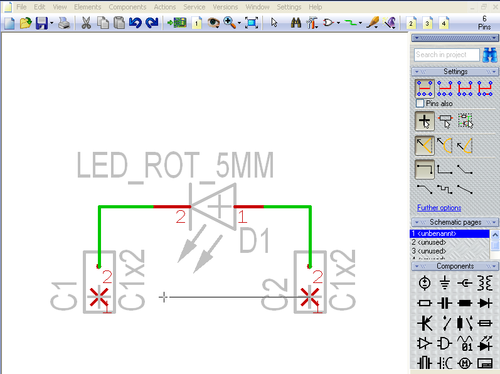

...and connect both remaining pins for ground connection.



Schematic 9.jpg

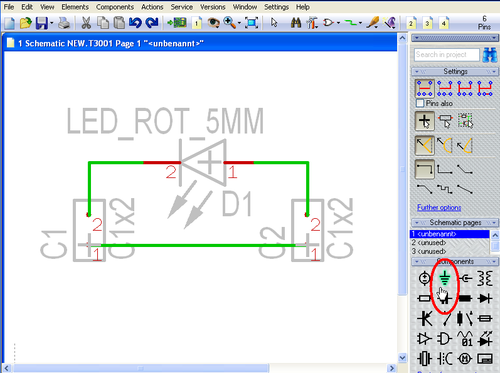

The ground signal is connected by a ground symbol. Please find it within the range of "Reference pins" in the sidebar:





Drag and drop the GND symbol in the schematic by M1H...

More details?

Reference Symbol
Reorganisation
Settings / Options




Schematic 9b.jpg

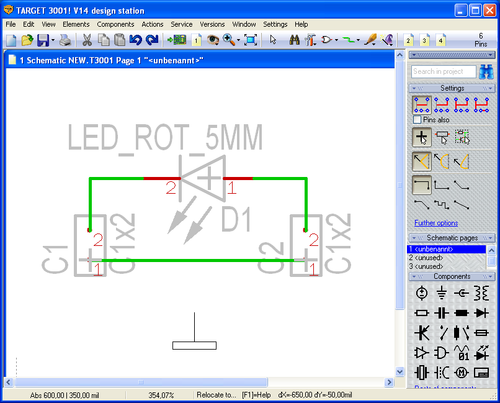

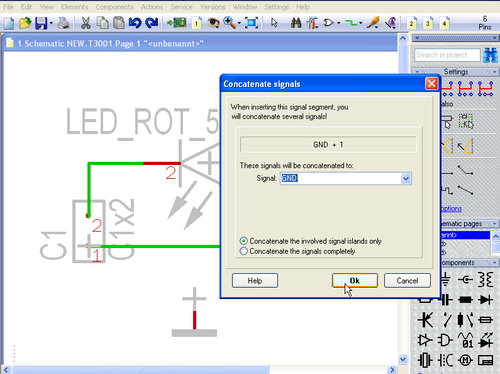

...and connect it that way, that you drag a signal wire from the GND symbol towards the signal track. By this means the signal GND is carried over from the GND-Symbol to the signal track. An intermediate dialog confirms the naming of this signal.

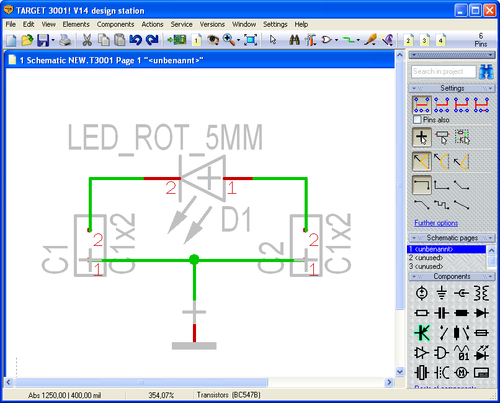

That's what your little schematic now could look like:
