A drawing frame (drawing sheet) containing a title block and borders for drawing you will need in the schematic mode. Maybe you would like to fix the title of the drawing, drawing date, author, last modified or similar.


Click image to enlarge
Do so by handling a frame like a component. Add/delete lines, bend them, insert text and so on. You can edit any part of the drawing frame as you like. Save it again like a component under a new name. In TARGET 3001! please find several drawing frames like components by the use of the "Quick select". Look for "Search" and enter "frame".

Edit text in the frame

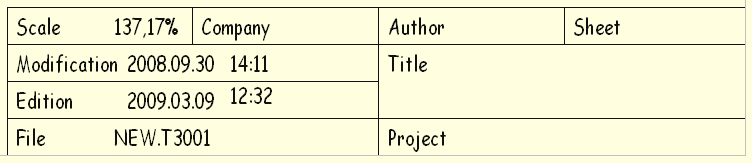

The text part of a drawing frame might look this way:

If you for example would like to change the font style, please drag a highlighting square over the complete text area and press key [e] for "edit".

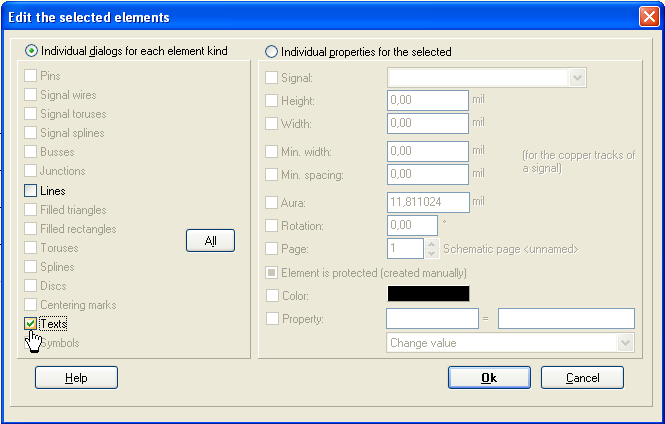

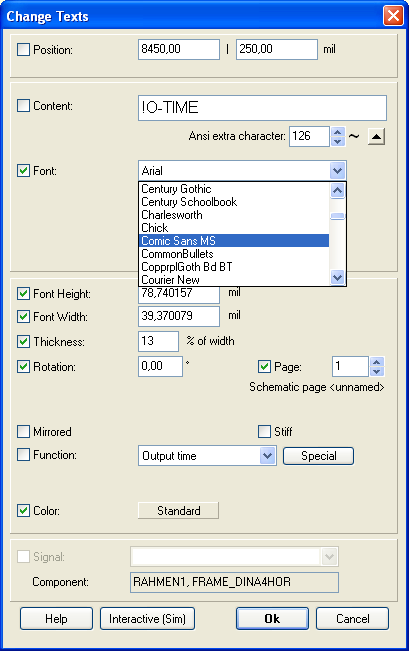

Tick the box "Text" and say OK. Now select from the various options within the "Change Texts" dialog:

This might be the result:

If you want to adjust the font height and width, do it within the same dialog.

.

Edit outline of the frame

Every part of the frame outline can be touched and treated (modified) like any drawing element

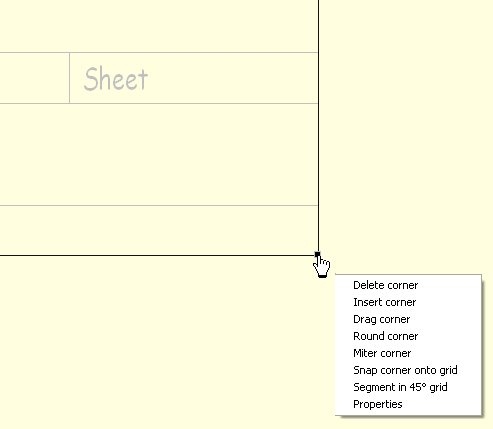

If you want to round the corners for example, please highlight both neighbored lines and click the black little touchpad with the right mousekey. Now select the "Round Corner" menue line.

Now select a 50 mil diameter rounding and this is the result:

Save it again

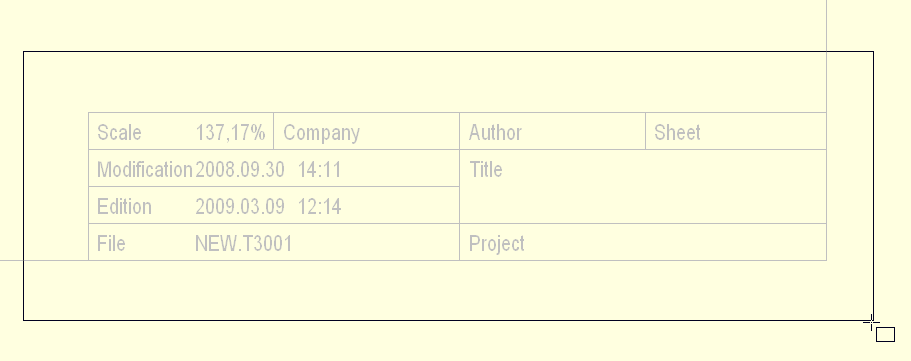

Please zoom out until you see the complete frame in total. Highlight it by the use of a catch-window. Now hover the mouse to the absolute zero and press key [y] for placing the handle cross at cursor position. Again highlight the complete frame. Now press key [x] for exporting the frame to a desired library.

.
