3D-view of the layout
From IBF-Wiki
This article is part of an introduction tutorial called CrashCourse2
Download this article as PDF-File

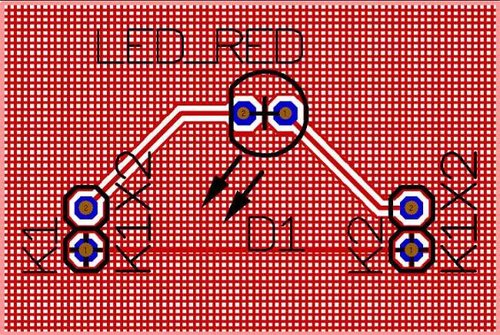

Currently the layout looks like that:

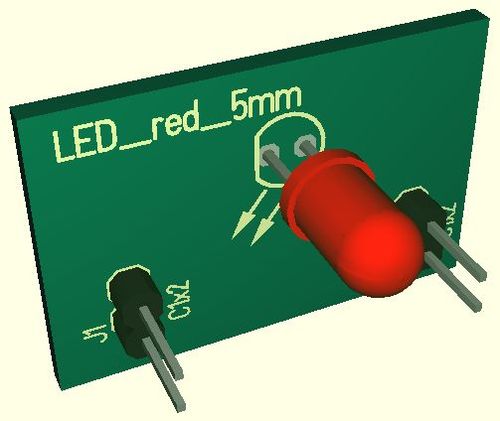

View it in 3D by menu "Actions/3D-View". After a short time of computation the result is:
You can turn the object to all sides by M1H or shift it by M2H. Zoom in and out using the mouse wheel.
See the grid structure on the bottom side as well as the Thermal Pads and all the other things...

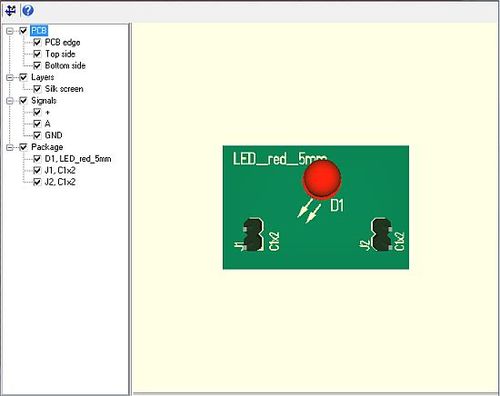

With a double click (M11) the PCB can be rotated continuously. Clicking M11 again switches auto rotation off. During rotating you can interfere with M1H. Left side in the browser bar you can toggle parts visible and invisible with the small hooks. With a M1 click onto the names you can mark the parts in blue color on the right side in the 3D view.
Please note that a solid (not gridded) groundplane currently is not displayed in 3D View. But the computation time before displaying 3D is much shorter in that case.
